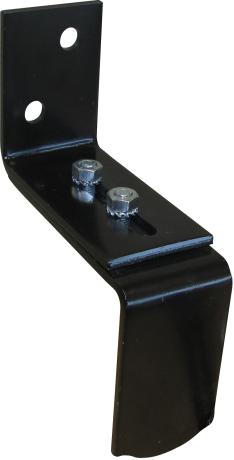

- Upper shutter stopper for espagnolette locking device for external thermal insulation.
- Cataphoresis finish.
- Wall plugs and screws supplied.

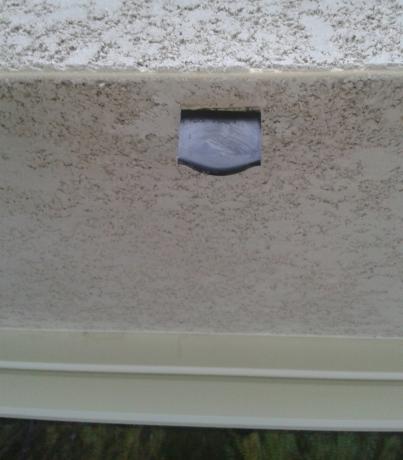

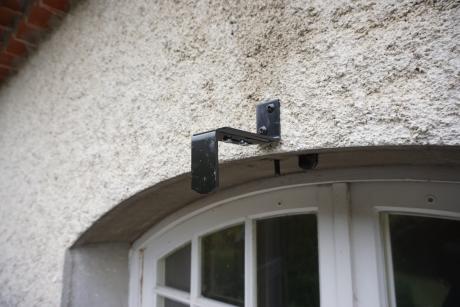

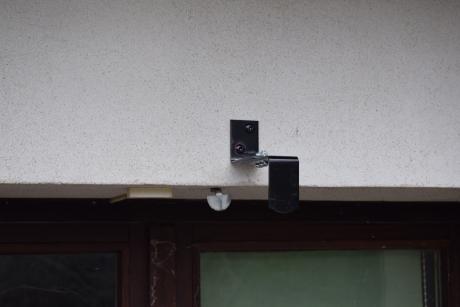

- Install before mounting the insulation.

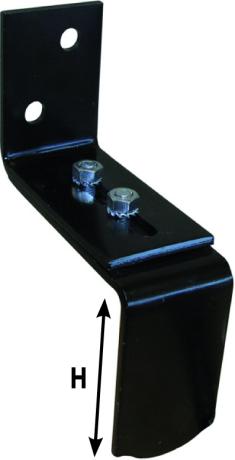

- Height options:
- 70 mm for non-insulated reveals.
- 100 mm for insulated reveals.
I.N.G. FIXATIONS, Inventeur et fabricant Français de fixations depuis 1985
Upper shutter stopper, insulation, for espagnolette locking device
For external thermal insulation
Images
Vidéos
Description
Product benefits
- Made in France.
Homologations
CSTB
Conditionnement
Materials
Concrete
Solid breeze block / Stone
Solid brick
Breeze block
Hollow Brick
Our range
Documentation
CSTB - Etudes de ponts thermiques Battement haut ISO
Technical informations - Implementation data
| Height | Insulation min. - max. | |
|---|---|---|
| Part D | 70 mm (non-insulated reveals) | 100 - 130 mm |
| Part E | 70 mm (non-insulated reveals) | 130 - 180 mm |
| Part R | 70 mm (non-insulated reveals) | 130 - 200 mm |
| Part S | 70 mm (non-insulated reveals) | 190 - 260 mm |
| Part F | 100 mm (insulated reveals) | 100 - 130 mm |
| Part J | 100 mm (insulated reveals) | 130 - 180 mm |
| Part G | 100 mm (insulated reveals) | 130 - 200 mm |
