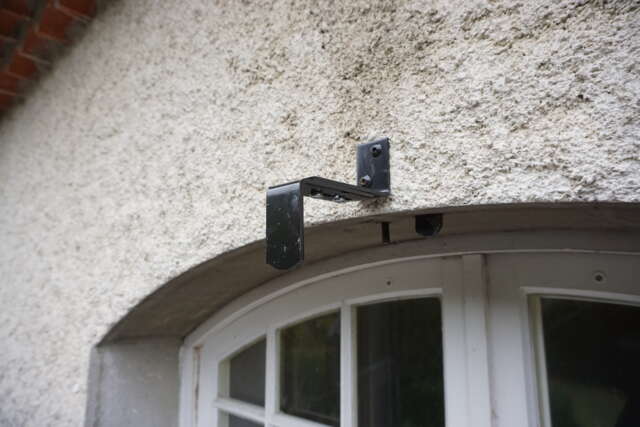

Upper shutter stopper, insulation, for espagnolette locking device
For external thermal insulation
Description
- Upper shutter stopper for espagnolette locking device for external thermal insulation.
- Cataphoresis finish.
- Wall plugs and screws supplied.
- Install before mounting the insulation.
- Height options:
- 70 mm for non-insulated reveals.
- 100 mm for insulated reveals.
Product advantages
- Made in France.
Béton
Parpaing Plein/pierre
Brique pleine
Parpaing
Brique creuse
Approvals
CSTB
Béton
Parpaing Plein/pierre
Brique pleine
Parpaing
Brique creuse
CSTB
Product variants
|
Designation 8 variants |
Condt | Hauteur | Surcondt | Reference |
|---|---|---|---|---|
|
BATTEMENT HAUT ISO PIECE D Sachet de 4
|
Sachet de 4 | 70 mm | 5 sachets |
A130580
|
|
BATTEMENT HAUT ISO PIECE E Sachet de 4
|
Sachet de 4 | 70 mm | 5 sachets |
A130590
|
|
* BATTEMENT HAUT ISO PIECE E L'unité x
|
Unité | 70 mm | Aucun |
A130591
|
|
BATTEMENT HAUT ISO PIECE R Sachet de 4
|
Sachet de 4 | 70 mm | 5 sachets |
A130592
|
|
* BATTEMENT HAUT ISO PIECE S Sachet de 4 x
|
Sachet de 4 | 70 mm | 5 sachets |
A130594
|
|
* BATTEMENT HAUT ISO PIECE F Sachet de 4 x
|
Sachet de 4 | 100 mm | 5 sachets |
A130600
|
|
BATTEMENT HAUT ISO PIECE J Sachet de 4
|
Sachet de 4 | 100 mm | 5 sachets |
A130620
|
|
* BATTEMENT HAUT ISO PIECE G Sachet de 4 x
|
Sachet de 4 | 100 mm | 5 sachets |
A130630
|
Technical informations - Implementation data
| Height | Insulation min. - max. | |
|---|---|---|
| Part D | 70 mm (non-insulated reveals) | 100 - 130 mm |
| Part E | 70 mm (non-insulated reveals) | 130 - 180 mm |
| Part R | 70 mm (non-insulated reveals) | 130 - 200 mm |
| Part S | 70 mm (non-insulated reveals) | 190 - 260 mm |
| Part F | 100 mm (insulated reveals) | 100 - 130 mm |
| Part J | 100 mm (insulated reveals) | 130 - 180 mm |
| Part G | 100 mm (insulated reveals) | 130 - 200 mm |
Technical documentation
Upper shutter stopper, insulation, for espagnolette locking device - cstb-etudes-de-ponts-thermiques-battement-haut-iso
