CHEVILLE CÂBLE ÉLEC dimensions
Cable-elec plug
Connection cable fastening for external insulation
Description
- Connection cables fastening for external insulation.
- Plug Ø 10 + double thread screw Ø7 - M7.
- Contents: 6 plugs, 6 double-threaded screws, 6 M7 threaded electrician collar bases, 6 electrician collars, 1 nut (to make a lock nut) and a screwing key.
Product advantages
- Easy and fast.
- Robust.
- All materials and ideal for hollow materials.
- Made in France.

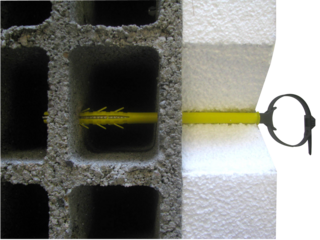

- In hollow materials, expansions on several cells of the support.
- 100% polyamide 6 nylon plug.
- Anti-rotation fins.
Béton
Parpaing Plein/pierre
Brique pleine
Parpaing
Brique creuse
Béton cellulaire
Béton
Parpaing Plein/pierre
Brique pleine
Parpaing
Brique creuse
Béton cellulaire
Product variants
|
Designation 5 variants |
Condt | Longueur | Surcondt | Reference |
|---|---|---|---|---|
|
CHEVILLE CABLE-ELEC 10 X 160 Sachet de 6
|
Sachet de 6 | 160 mm | 5 sachets |
A134190
|
|
CHEVILLE CABLE-ELEC 10 X 200 Sachet de 6
|
Sachet de 6 | 200 mm | 5 sachets |
A134200
|
|
CHEVILLE CABLE-ELEC 10 X 240 Sachet de 6
|
Sachet de 6 | 240 mm | 5 sachets |
A134210
|
|
CHEVILLE CABLE-ELEC 10 X 280 Sachet de 6
|
Sachet de 6 | 280 mm | 5 sachets |
A134220
|
|
CHEVILLE CABLE-ELEC 10 X 340 Sachet de 6
|
Sachet de 6 | 340 mm | 5 sachets |
A134225
|
Technical informations - Implementation data
| Ø Plug | Plug lenght |
Drilling | Insulation mini-maxi | ||
|---|---|---|---|---|---|
| Hollow materials | Solid materials | Hollow materials | Hollow materials | ||
| Ø10 + screw Ø7 | 160 mm | Ø10 | Ø11 | 10-30 mm | 10-80 mm |
| 200 mm | Ø10 | Ø11 | 40-70 mm | 90-120 mm | |
| 240 mm | Ø10 | Ø11 | 80-110 mm | 130-160 mm | |
| 280 mm | Ø10 | Ø11 | 120-150 mm | 170-200 mm | |
| 340 mm | Ø10 | Ø11 | 160-210 mm | 210-260 mm | |
