CHEVILLE GB
GB wall plug
Wall plug for aerated concrete and gypsum boards
Description
- 100% nylon polyamide 6 wall plug for aerated concrete and gypsum boards.
- Screwing with a hex drill bit.
Product advantages
- Quick and easy: Installation with a screwdriver or impact driver (hex drill bit).
- Excellent resistance to changes in temperature: -40°C to +80°C.
- Can be used with threaded wood screws, metric screws or lag screws.
Application
- Lights, wall shelving, towel rails, letter boxes, curtain rods, cable trays etc.
- All lightweight fixings in aerated concrete and gypsum board.
Béton cellulaire
Béton cellulaire
Product variants
|
Designation 5 variants |
Condt | Diamètre | Longueur | Surcondt | Reference |
|---|---|---|---|---|---|
|
CHEVILLE GB 6 X 50 Bte de 25
|
Boîte de 25 | M 6 | 50 mm | Aucun |
A170410
|
|
CHEVILLE GB 8 X 60 Bte de 25
|
Boîte de 25 | M 8 | 60 mm | Aucun |
A170415
|
|
CHEVILLE GB 10 X 70 Bte de 10
|
Boîte de 10 | M 10 | 70 mm | Aucun |
A170420
|
|
CHEVILLE GB M6 Sachet de 4
|
Sachet de 4 | M 6 | 50 mm | 20 sachets |
A853800
|
|
CHEVILLE GB M8 Sachet de 4
|
Sachet de 4 | M 8 | 60 mm | 20 sachets |
A853805
|

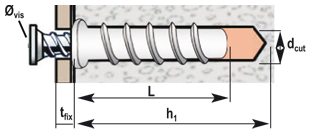

Technical informations - Implementation data
 |
l Plug length |
Dcut Drilling diameter |
Dvis Screw diameter |
tfix Thickness max. |
H1 Drilling depth |
Load Max. |
|---|---|---|---|---|---|---|
| M 6 | 50 mm | 10 mm | M6 or Ø 5 à 6 | 5 mm | 60 mm | 15 kg |
| M 8 | 60 mm | 12 mm | M8 or Ø 7 à 8 | 10 mm | 70 mm | 20 kg |
| M 10 | 70 mm | 14 mm | M10 or Ø 9 à 10 | 10 mm | 80 mm | 25 kg |
Technical informations - Utilisation
Technical informations - Utilisation
