CHEVILLE IXE

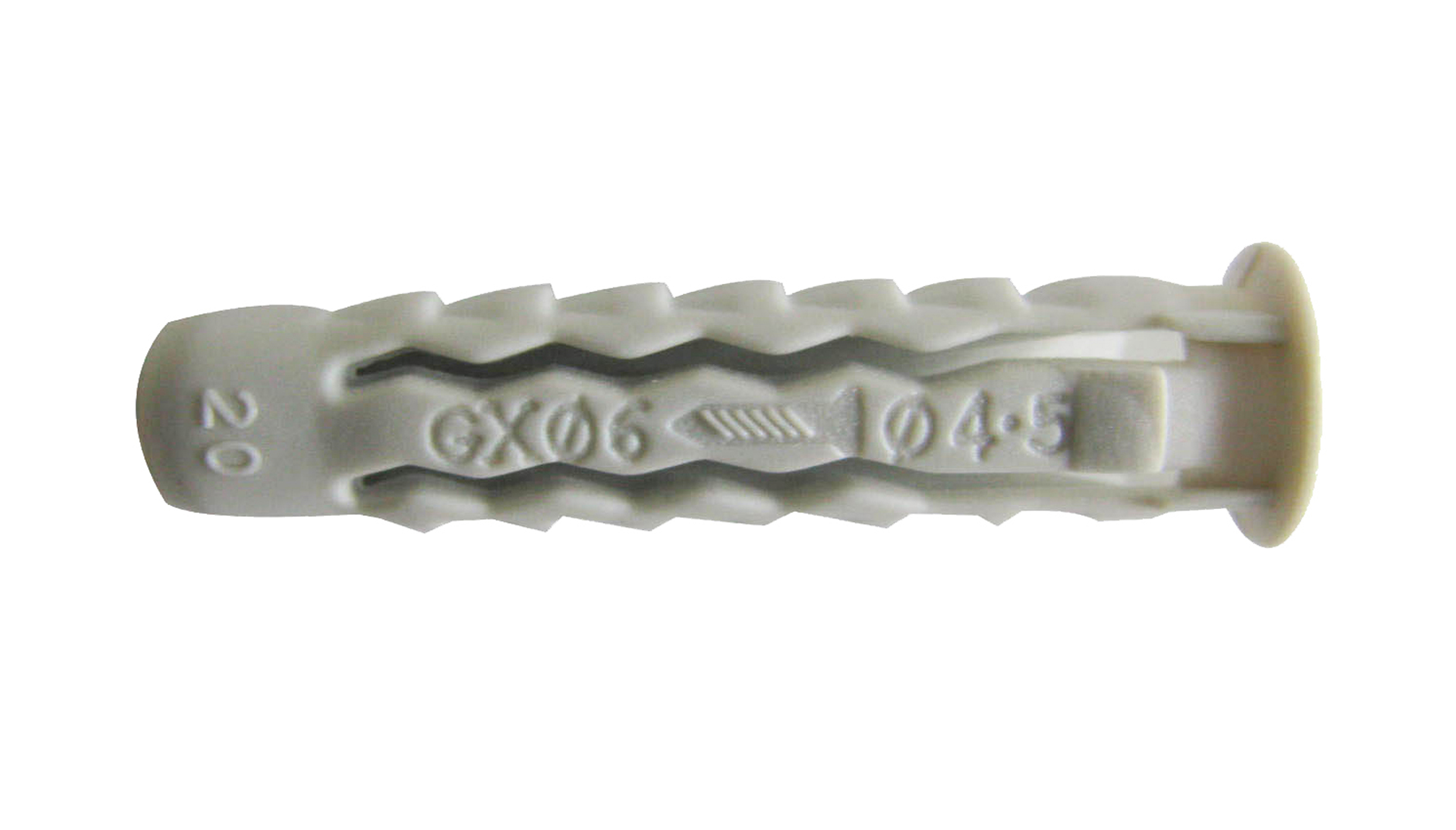

IXE multi-purpose wall plug
Nylon wall plug suitable for all materials
Description
- 100% nylon wall plug suitable for all materials.
- Wall plug with collar.
Product advantages
- A knot-like connection is formed in hollow materials for a reliable and durable fixing.
- Expands in four directions in solid materials.
- Anti-rotation lugs: the wall plug does not rotate while it is being secured.
- Excellent resistance to changes in temperature: -40°C to 80°C.
Béton
Parpaing Plein/pierre
Brique pleine
Parpaing
Brique creuse
Béton
Parpaing Plein/pierre
Brique pleine
Parpaing
Brique creuse
Product variants
|
Designation 19 variants |
Condt | Diamètre | Longueur | Surcondt | Reference |
|---|---|---|---|---|---|
|
CHEVILLE POLYVALENTE IXE D 5 X 25 Bte de 100
|
Boîte de 100 | 5 mm | 25 mm | Aucun |
A170210
|
|
CHEVILLE POLYVALENTE IXE D 6 X 30 Bte de 100
|
Boîte de 100 | 6 mm | 30 mm | Aucun |
A170212
|
|
CHEVILLE POLYVALENTE IXE D 8 X 40 Bte de 100
|
Boîte de 100 | 8 mm | 40 mm | Aucun |
A170214
|
|
CHEVILLE POLYVALENTE IXE D 10 X 50 Bte de 50
|
Boîte de 50 | 10 mm | 50 mm | Aucun |
A170216
|
|
CHEVILLE POLYVALENTE IXE D 12 X 60 Bte de 25
|
Boîte de 25 | 12 mm | 60 mm | Aucun |
A170218
|
|
CHEVILLE POLYVALENTE IXE D 14 X 70 Bte de 15
|
Boîte de 15 | 14 mm | 70 mm | Aucun |
A170220
|
|
CHEVILLE IXE D 6 Seau de 600
|
Seau de 600 | 6 mm | 30 mm | Aucun |
A171310
|
|
CHEVILLE IXE D 8 Seau de 250
|
Seau de 250 | 8 mm | 40 mm | Aucun |
A171315
|
|
CHEVILLE IXE D 10 Seau de 130
|
Seau de 130 | 10 mm | 50 mm | Aucun |
A171320
|
|
CHEVILLE IXE D 12 Seau de 75
|
Seau de 75 | 12 mm | 60 mm | Aucun |
A171323
|
|
CHEVILLE IXE D 8 Seau de 600
|
Seau de 600 | 8 mm | 40 mm | Aucun |
A171340
|
|
CHEV. POLYVALENTE IXE D 5 X 25 Sachet de 25
|
Sachet de 25 | 5 mm | 25 mm | 30 sachets |
A858680
|
|
CHEV. POLYVALENTE IXE D 6 X 30 Sachet de 25
|
Sachet de 25 | 6 mm | 30 mm | 30 sachets |
A858682
|
|
CHEV. POLYVALENTE IXE D 8 X 40 Sachet de 25
|
Sachet de 25 | 8 mm | 40 mm | 20 sachets |
A858684
|
|
CHEV. POLYVALENTE IXE D 10 X 50 Sachet de 25
|
Sachet de 25 | 10 mm | 50 mm | 15 sachets |
A858686
|
Technical informations - Implementation data
 |
l Plug length |
Dcut Drilling diameter |
Dvis Screw diameter |
tfix Thickness max. |
H1 Drilling depth |
Load Max. | |
|---|---|---|---|---|---|---|---|
| Hollow materials | Solid materials | ||||||
| Ø 5 | 25 mm | 5 mm | 3 - 4 mm | 5 mm | 35 mm | 20 kg | 30 kg |
| Ø 6 | 30 mm | 6 mm | 4 - 5 mm | 10 mm | 40 mm | 25 kg | 50 kg |
| Ø 8 | 40 mm | 8 mm | 4,5 - 6 mm | 10 mm | 50 mm | 35 kg | 80 kg |
| Ø 10 | 50 mm | 10 mm | 6 - 8 mm | 10 mm | 60 mm | 45 kg | 120 kg |
| Ø 12 | 60 mm | 12 mm | 8 - 10 mm | 15 mm | 70 mm | 55 kg | 150 kg |
| Ø 14 | 75 mm | 14 mm | 10 - 12 mm | 15 mm | 85 mm | 70 kg | 180 kg |

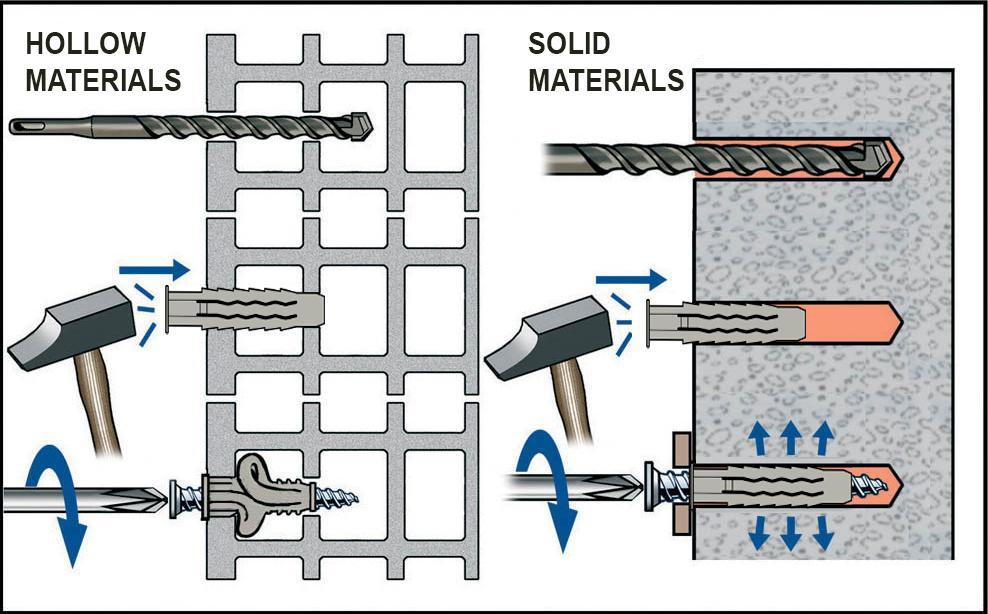

Technical informations - Utilisation
Technical informations - Utilisation
