CHEVILLE NYLON

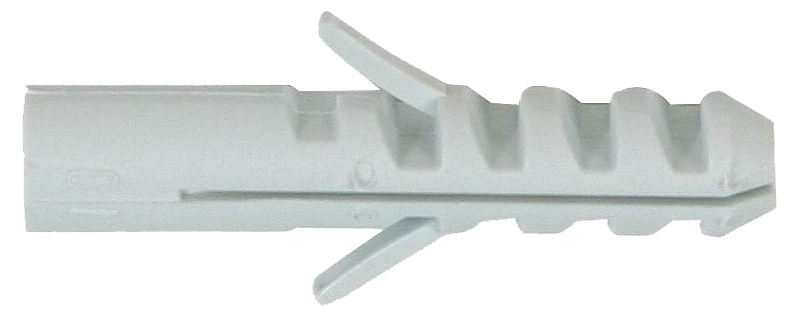

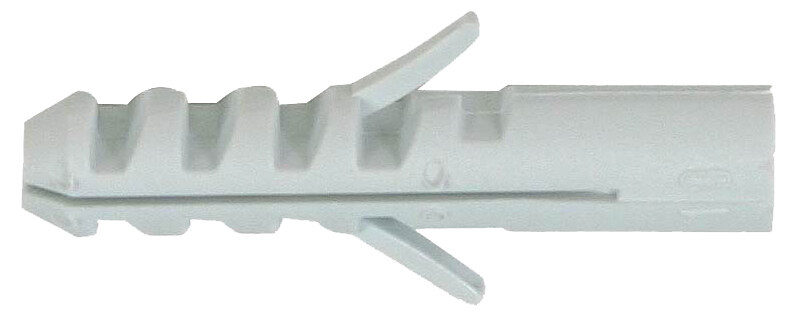

Nylon wall plug
Nylon wall plug suitable for all materials
Description
- Nylon wall plug suitable for all materials.
- Optimum hold in solid materials.
- Available with a collar Ø 6 or Ø 8.
Product advantages
- Anti-rotation lugs: the wall plug does not rotate while it is being secured.
- Excellent resistance to changes in temperature: -40°C to 80°C.
Béton
Parpaing Plein/pierre
Brique pleine
Parpaing
Brique creuse
Béton
Parpaing Plein/pierre
Brique pleine
Parpaing
Brique creuse
Product variants
|
Designation 17 variants |
Condt | Diamètre | Longueur | Surcondt | Reference |
|---|---|---|---|---|---|
|
CHEVILLE NYLON ING D 5 Bte de 100
|
Boîte de 100 | 5 mm | 25 mm | Aucun |
A170070
|
|
CHEVILLE NYLON ING D 6 Bte de 100
|
Boîte de 100 | 6 mm | 30 mm | Aucun |
A170080
|
|
CHEVILLE NYLON ING D 6 COLLERETTE Bte de 100
|
Boîte de 100 | 6 mm | 30 mm | Aucun |
A170083
|
|
CHEVILLE NYLON ING D 8 Bte de 100
|
Boîte de 100 | 8 mm | 40 mm | Aucun |
A170090
|
|
CHEVILLE NYLON ING D 8 COLLERETTE Bte de 100
|
Boîte de 100 | 8 mm | 40 mm | Aucun |
A170095
|
|
CHEVILLE NYLON ING D 10 Bte de 50
|
Boîte de 50 | 10 mm | 50 mm | Aucun |
A170100
|
|
CHEVILLE NYLON ING D 12 Bte de 25
|
Boîte de 25 | 12 mm | 60 mm | Aucun |
A170110
|
|
CHEVILLE NYLON ING D 14 Bte de 15
|
Boîte de 15 | 14 mm | 75 mm | Aucun |
A170120
|
|
CHEVILLE NYLON ING D 16 Bte de 10
|
Boîte de 10 | 16 mm | 80 mm | Aucun |
A170125
|
|
CHEVILLE NYLON D 6 Seau de 600
|
Seau de 600 | 6 mm | 30 mm | Aucun |
A171050
|
|
CHEVILLE NYLON D 8 Seau de 250
|
Seau de 250 | 8 mm | 40 mm | Aucun |
A171110
|
|
CHEV. NYLON D 5 Sachet de 25
|
Sachet de 25 | 5 mm | 25 mm | 30 sachets |
A858601
|
|
CHEV. NYLON D 6 Sachet de 25
|
Sachet de 25 | 6 mm | 30 mm | 30 sachets |
A858602
|
|
CHEV. NYLON D 8 Sachet de 25
|
Sachet de 25 | 8 mm | 40 mm | 20 sachets |
A858604
|
|
CHEV. NYLON D 10 Sachet de 25
|
Sachet de 25 | 10 mm | 50 mm | 15 sachets |
A858605
|
Technical informations - Implementation data
 |
l Plug length |
Dcut Drilling diameter |
Dvis Screw diameter |
tfix Thickness max. |
H1 Drilling depth |
Load Max. | |
|---|---|---|---|---|---|---|---|
| Hollow materials | Solid materials | ||||||
| Ø 5 | 25 mm | 5 mm | 2,5 - 4 mm | 5 mm | 35 mm | 20 kg | 30 kg |
| Ø 6 | 30 mm | 6 mm | 3,5 - 5 mm | 10 mm | 40 mm | 25 kg | 50 kg |
| Ø 8 | 40 mm | 8 mm | 4,5 - 6 mm | 10 mm | 50 mm | 35 kg | 80 kg |
| Ø 10 | 50 mm | 10 mm | 6 - 8mm | 10 mm | 60 mm | 45 kg | 120 kg |
| Ø 12 | 60 mm | 12 mm | 8 - 10 mm | 15 mm | 70 mm | 55 kg | 150 kg |
| Ø 14 | 75 mm | 14 mm | 10 - 12 mm | 15 mm | 85 mm | 70 kg | 180 kg |
| Ø 16 | 80 mm | 16 mm | 12 - 14 mm | 15 mm | 90 mm | 80 kg | 200 kg |
