CHEVILLE ROX

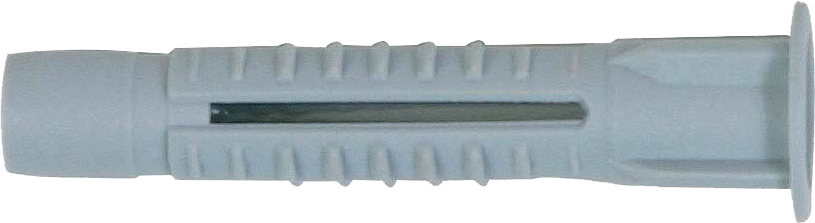

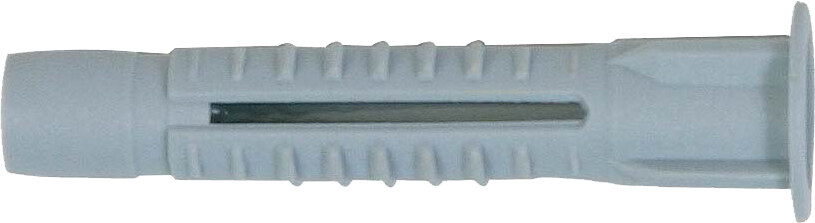

Rox wall plug
Nylon wall plug suitable for all materials
Description
- 100% nylon wall plug suitable for all materials.

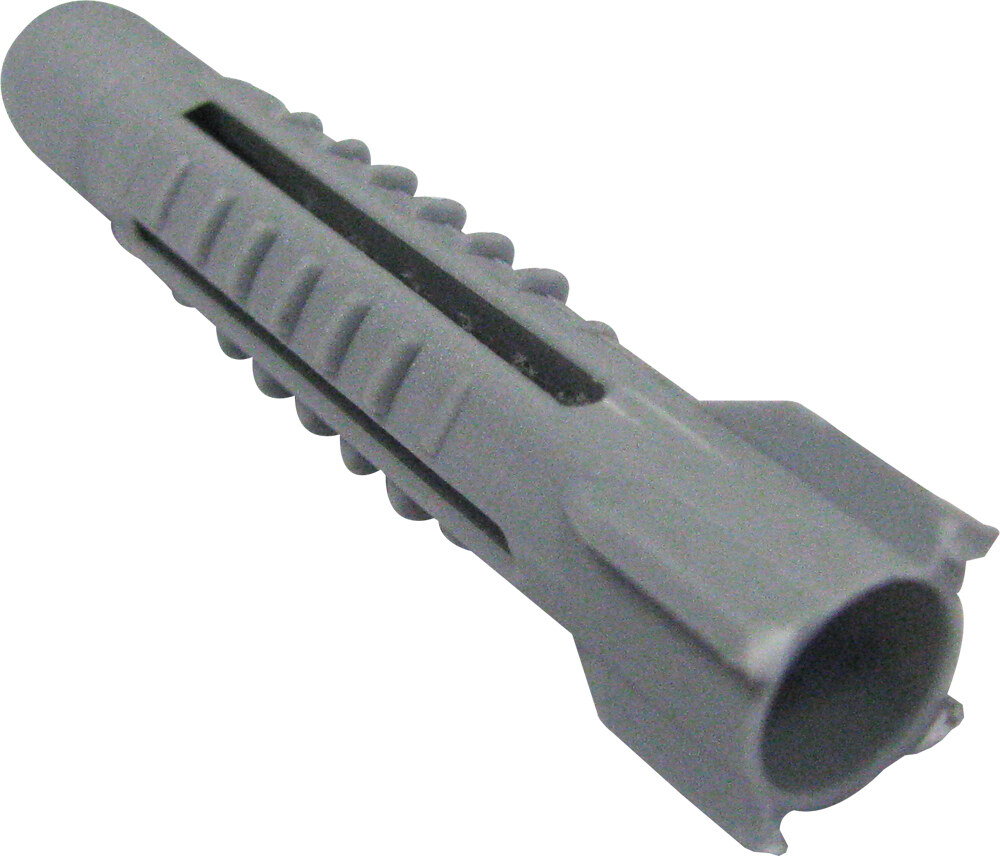

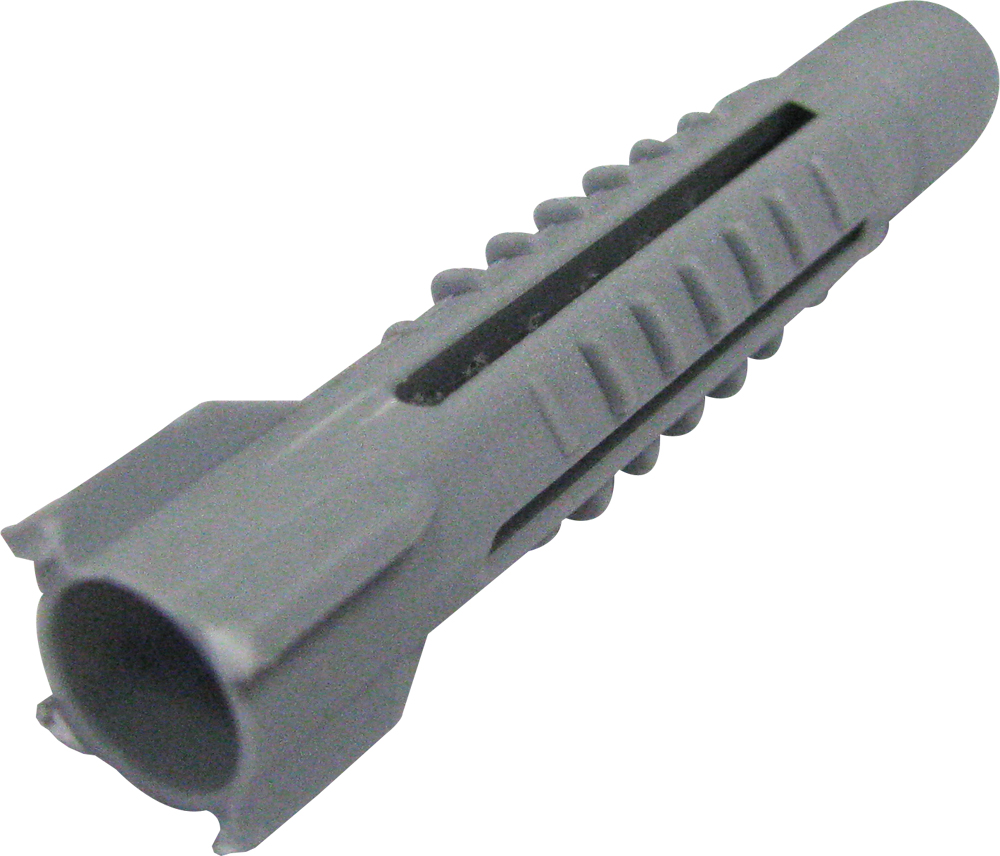

- Wall plug with removable collar.
Product advantages
- A knot-like connection is formed in hollow materials for a reliable and durable fixing.
- Expands in four directions in solid materials.
- Removable collar.
- Anti-rotation lugs: the wall plug does not rotate while it is being secured.
- Excellent resistance to changes in temperature: -40°C to 80°C.
Concrete
Solid block/stone
Solid brick
Breeze block
Hollow brick
Concrete
Solid block/stone
Solid brick
Breeze block
Hollow brick
Product variants
|
Designation 13 variants |
Diamètre | Longueur | Reference | Condt |
|---|---|---|---|---|
|
CHEVILLE ROX 6 X 40 Seau de 400
|
6 mm | 40 mm |
A170280
|
Seau de 400 |
|
CHEVILLE ROX 6 X 40 GRISE Bte de 100
|
6 mm | 40 mm |
A170300
|
Boîte de 100 |
|
CHEV. ROX D 6 Sachet de 25
|
6 mm | 40 mm |
A858710
|
Sachet de 25 |
|
CHEVILLE ROX 8 X 50 Seau de 200
|
8 mm | 50 mm |
A170290
|
Seau de 200 |
|
CHEVILLE ROX 8 X 50 GRISE Bte de 100
|
8 mm | 50 mm |
A170310
|
Boîte de 100 |
|
CHEV. ROX D 8 Sachet de 25
|
8 mm | 50 mm |
A858720
|
Sachet de 25 |
|
CHEVILLE ROX 10 X 60 Seau de 100
|
10 mm | 60 mm |
A170295
|
Seau de 100 |
|
CHEVILLE ROX 10 X 60 GRISE Bte de 50
|
10 mm | 60 mm |
A170315
|
Boîte de 50 |
|
CHEV. ROX D 10 Sachet de 25
|
10 mm | 60 mm |
A858730
|
Sachet de 25 |
|
CHEVILLE ROX 12 X 70 Seau de 50
|
12 mm | 70 mm |
A170296
|
Seau de 50 |
|
CHEV. ROX D 12 Sachet de 15
|
12 mm | 70 mm |
A858732
|
Sachet de 15 |
|
CHEVILLE ROX 14 X 75 Seau de 25
|
14 mm | 75 mm |
A170298
|
Seau de 25 |
|
CHEV. ROX D 14 Sachet de 10
|
14 mm | 75 mm |
A858734
|
Sachet de 10 |
Technical informations - Implementation data
 |
l Plug length |
Dcut Drilling diameter |
Dvis Screw diameter |
tfix Thickness max. |
H1 Drilling depth |
Load Max. | |
|---|---|---|---|---|---|---|---|
| Hollow materials | Solid materials | ||||||
| Ø 6 | 40 mm | 6 mm | 3,5 mm | 10 mm | 50 mm | 25 kg | 50 kg |
| Ø 8 | 50 mm | 8 mm | 5 mm | 10 mm | 60 mm | 35 kg | 80 kg |
| Ø 10 | 60 mm | 10 mm | 6 mm | 10 mm | 70 mm | 45 kg | 120 kg |
| Ø 12 | 70 mm | 12 mm | 8 mm | 15 mm | 80 mm | 55 kg | 150 kg |
| Ø 14 | 75 mm | 14 mm | 10 mm | 15 mm | 85 mm | 70 kg | 180 kg |
