FIXATION RADIATEUR FONTE dimensions
Cast iron radiator fixing
Cast iron radiator fixing with ancient wall or with lining
Description

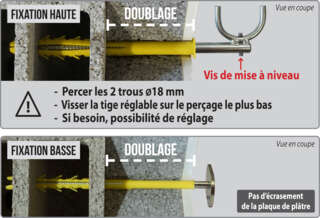

- Cast-iron radiator fixing on ancient wall or wall with insulating lining + plasterboard.
- Top fixing: Ø18 mm plug + Ø14 mm screw.
- Bottom fixing: Ø10 mm plug + Ø7 mm screw.
- Screws with white galvanised finish.
Product advantages
- Hexagonal drive for easier installation.
- level adjustment screw.
- In hollow materials, expands over several cavities in the substrate.
- Does not crush plasterboard.
- 100% nylon polyamide 6.
- Anti-rotation blades.
- Quick and easy to install.
Application
- Cast-iron radiator fixing on ancient wall or wall with insulating lining + plasterboard.
Parpaing
Brique creuse
Parpaing
Brique creuse
Product variants
|
Designation 8 variants |
Capacité | Condt | Longueur | Surcondt | Reference |
|---|---|---|---|---|---|
|
FIXATION RADIATEUR FONTE Ép.100mm 18 X 240 Le sachet
|
Radiateur 100 mm | Sachet de 2 | 240 mm | Aucun |
A186120
|
|
FIXATION RADIATEUR FONTE Ép.100mm 18 X 160 Le sachet
|
Radiateur 100 mm | Sachet de 2 | 160 mm | Aucun |
A186115
|
|
FIXATION RADIATEUR FONTE Ép.100mm 18 X 200 Le sachet
|
Radiateur 100 mm | Sachet de 2 | 200 mm | Aucun |
A186117
|
|
FIXATION RADIATEUR FONTE Ép.100mm 18 X 300 Le sachet
|
Radiateur 100 mm | Sachet de 2 | 300 mm | Aucun |
A186122
|
|
FIXATION RADIATEUR FONTE Ép.150mm 18 X 160 Le sachet
|
Radiateur 150 mm | Sachet de 2 | 160 mm | Aucun |
A186130
|
|
FIXATION RADIATEUR FONTE Ép.150mm 18 X 200 Le sachet
|
Radiateur 150 mm | Sachet de 2 | 200 mm | Aucun |
A186132
|
|
FIXATION RADIATEUR FONTE Ép.150mm 18 X 240 Le sachet
|
Radiateur 150 mm | Sachet de 2 | 240 mm | Aucun |
A186135
|
|
FIXATION RADIATEUR FONTE Ép.150mm 18 X 300 Le sachet
|
Radiateur 150 mm | Sachet de 2 | 300 mm | Aucun |
A186137
|
Technical informations - Implementation data
 |
|||
|---|---|---|---|
| Plug length | td | tfix | hef |
| 160 mm | 170 mm | ancient wall | 130 mm |
| 200 mm | 210 mm | 70 mm | 130 mm |
| 240 mm | 250 mm | 110 mm | 130 mm |
| 300 mm | 310 mm | 170 mm | 130 mm |
Technical documentation
Cast iron radiator fixing - fixation-radiateur-fonte-documentation
