FIXATION UNIVERSELLE dimensions
M6 and M8 universal fixing
For plasterboard + insulation lining
Description
- Long wall plug for all materials with plasterboard and insulation lining.
- Wall plug Ø12.
- Double-threaded screw Ø 10, M6 and M8 thread.
- Double-threaded screw with white zinc plating.
- Screws and washers supplied
Product advantages
- Ideal for heavy loads on substrates with a plasterboard and insulation lining.
- Made in France.

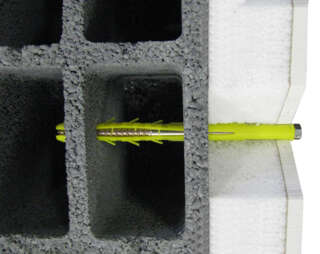

- In hollow materials, the wall plug opens up into several holes in the substrate.
- Does not crush the plasterboard when tightened.
- Wall plug 100% nylon polyamide 6.
- Anti-rotation fins.
- Quick and easy: Installation through the part to be affixed.
Application
- Radiators, towel rails, wall-hung boilers, TV mounting brackets, curtain rods, kitchen furnishings etc.
Béton
Parpaing Plein/pierre
Brique pleine
Parpaing
Brique creuse
Béton
Parpaing Plein/pierre
Brique pleine
Parpaing
Brique creuse
Product variants
|
Designation 7 variants |
Condt | Longueur | Surcondt | Reference |
|---|---|---|---|---|
|
FIXATION UNIVERSELLE 12 X 200 M6-M8 Bte de 20
|
Boîte de 20 | 200 mm | Aucun |
A160470
|
|
FIXATION UNIVERSELLE 12 X 240 M6-M8 Bte de 20
|
Boîte de 20 | 240 mm | Aucun |
A160480
|
|
FIXATION UNIVERSELLE 12 X 200 M6-M8 Sach. de 2
|
Sachet de 2 | 200 mm | 10 Sachets |
A855715
|
|
FIXATION UNIVERSELLE 12 X 240 M6-M8 Sach. de 2
|
Sachet de 2 | 240 mm | 10 Sachets |
A855718
|
|
CHEV. UNIVERSELLE 12 X 240 M6 M8 + MECHE Ø12 Sachet de 4
|
Sachet de 4 | 240 mm | 10 Sachets |
A855721
|
|
FIXATION UNIVERSELLE 12 X 130 M6-M8 Sach. de 2
|
Sachet de 2 | 130 mm | 10 Sachets |
A855713
|
|
FIXATION UNIVERSELLE 12 X 130 M6-M8 Bte de 20
|
Boîte de 20 | 130 mm | Aucun |
A160460
|
Technical informations - Average indicative loads (kg)
| Ø 12 | |
|---|---|
| Hollow materials | 80 |
| solid materials | 150 |
Technical informations - Implementation data
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Solid materials | hollow materials | |||||||
| Ø Plug | L | td | Drilling | tfix | hef | Drilling | tfix | hef |
| Ø12 + screw Ø10 | 130 mm | 140 mm | Ø13 | 50 mm | 80 mm | Ø12 | - | 130 mm |
| 200 mm | 210 mm | Ø13 | 120 mm | 80 mm | Ø12 | 70 mm | 130 mm | |
| 240 mm | 250 mm | Ø13 | 160 mm | 80 mm | Ø12 | 110 mm | 130 mm | |
Technical informations - Utilisation
Technical informations - Utilisation
Technical documentation
M6 and M8 universal fixing - fixation-universelle-m6-et-m8
