CHEVILLE RADIATEUR LÉGER
Wall plug for radiator
For plasterboard + insulation lining
Description
- Radiator fixing for use in hollow materials with a plasterboard and insulation lining.
- Double-threaded screw with white zinc plating.
- Screws and washers supplied
- Wall plug for light radiator: wall plug Ø10, double-threaded screw Ø7, thread M8 x 35 mm, washer Ø8, M8 nut.
- Wall plug for heavy radiator: wall plug Ø12, double-threaded screw Ø10, M8 thread, washer Ø8, M8 nut, M8 machine screws.
Product advantages
- Quick and easy.
- Made in France.
- Opens up into several holes in the substrate.
- Wall plug 100% nylon polyamide 6.
- Anti-rotation fins.
Parpaing
Brique creuse
Parpaing
Brique creuse
Product variants
|
Designation 14 variants |
Condt | Longueur | Surcondt | Reference |
|---|---|---|---|---|
|
CHEV. RADIATEUR LEGER 10 X 160 Sachet de 2
|
Sachet de 2 | 160 mm | 10 Sachets |
A150200
|
|
CHEV. RADIATEUR LEGER 10 X 160 M8 X125 Bte de 20
|
Boîte de 20 | 160 mm | Aucun |
A150215
|
|
CHEV. RADIATEUR LEGER 10 X 200 Sachet de 2
|
Sachet de 2 | 200 mm | 10 Sachets |
A150220
|
|
CHEV. RADIATEUR LEGER 10 X 240 Sachet de 2
|
Sachet de 2 | 240 mm | 5 sachets |
A150222
|
|
CHEV. RADIATEUR LEGER 10 X 280 Sachet de 2
|
Sachet de 2 | 280 mm | 5 sachets |
A150224
|
|
CHEV. RADIATEUR LEGER 10 X 200 M8 X 125 Bte de 20
|
Boîte de 20 | 200 mm | Aucun |
A150231
|
|
CHEV. RADIATEUR LEGER 10 X 240 M8 X 125 Bte de 20
|
Boîte de 20 | 240 mm | Aucun |
A150232
|
|
* CHEV. RADIATEUR LEGER 10 X 280 M8 X 125 Bte de 20 x
|
Boîte de 20 | 280 mm | Aucun |
A150234
|
|
CHEV. RADIATEUR 12X200 M8 Sachet de 2
|
Sachet de 2 | 200 mm | 10 Sachets |
A160100
|
|
CHEV. RADIATEUR 12 X 200 M8 Bte de 20
|
Boîte de 20 | 200 mm | Aucun |
A160150
|
|
CHEV. RADIATEUR 12X240 M8 Sachet de 2
|
Sachet de 2 | 240 mm | 10 Sachets |
A160200
|
|
CHEV. RADIATEUR 12X300 M8 Sachet de 2
|
Sachet de 2 | 300 mm | 10 Sachets |
A160220
|
|
CHEV. RADIATEUR 12 X 240 M8 Bte de 20
|
Boîte de 20 | 240 mm | Aucun |
A160250
|
|
* CHEV. RADIATEUR 12 X 300 M8 Bte de 20 x
|
Boîte de 20 | 300 mm | Aucun |
A160270
|
Technical informations - Implementation data
| Ø Plug | Plug length | Drilling depth | Drilling | Insulation max. |
|---|---|---|---|---|
| Ø10 + screw Ø7 | 160 mm | 170 mm | Ø10 | 30 mm |
| 200 mm | 210 mm | Ø10 | 70 mm | |
| 240 mm | 250 mm | Ø10 | 110 mm | |
| 280 mm | 290 mm | Ø10 | 150 mm | |
| Ø12 + screw Ø10 | 200 mm | 210 mm | Ø12 | 70 mm |
| 240 mm | 250 mm | Ø12 | 110 mm | |
| 300 mm | 310 mm | Ø12 | 170 mm | |

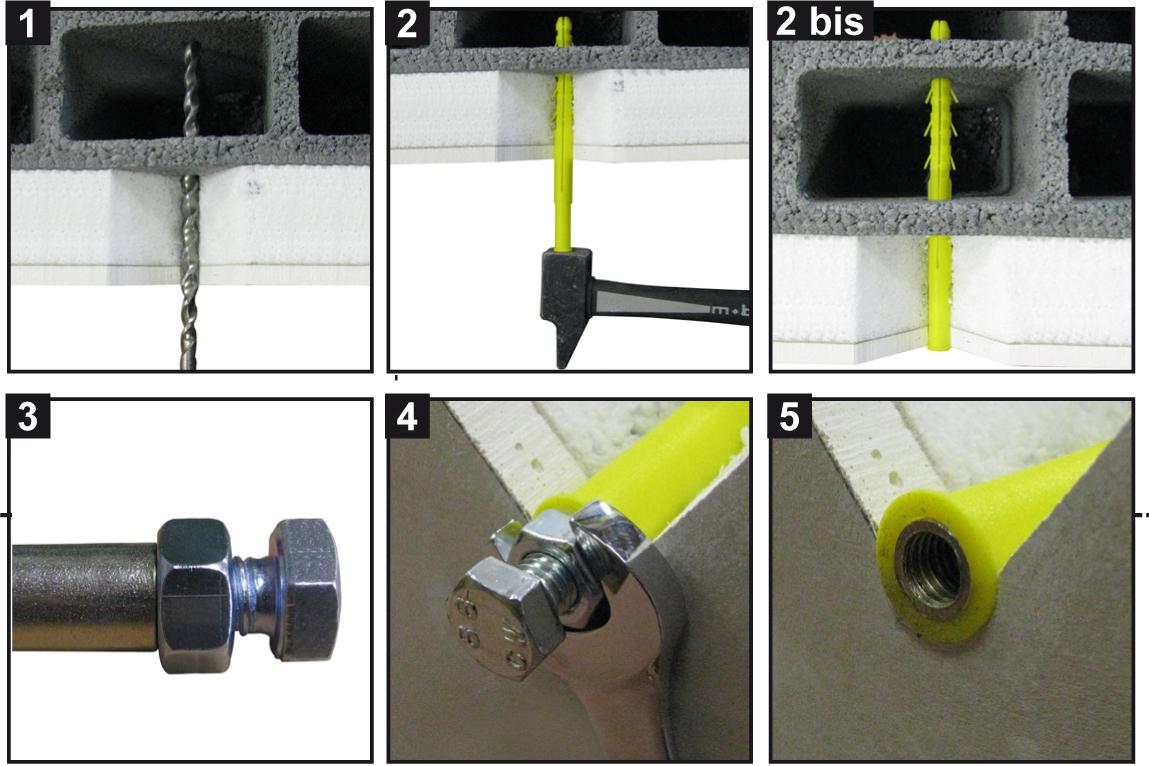

Technical informations - Utilisation
Technical informations - Utilisation
