Pied de poteau en âme fixe
Internal post base
Fixed and adjustable internal post base
Description
- Post bases protect the wood from rising damp and fungal degradation.
- S235JR steel in accordance with NF EN 10025.
Product advantages
- Adjustable post base: can be adjusted after the post has been installed.
- The internal post base enables discrete assembly.
- The central internal element ensures lifting loads.
Application
SUBSTRATES:
- Supporting element: wood, concrete.
- Supported member: solid wood, glued laminated timber.
APPLICATIONS:
- Arbours, courtyards, verandas, canopy posts etc.
Béton
Parpaing Plein/pierre
Bois
Approvals
ETA 16/0550
Béton
Parpaing Plein/pierre
Bois
ETA 16/0550
Product variants
|
Designation 2 variants |
Condt | Hauteur | Largeur | Longueur | Reference |
|---|---|---|---|---|---|
|

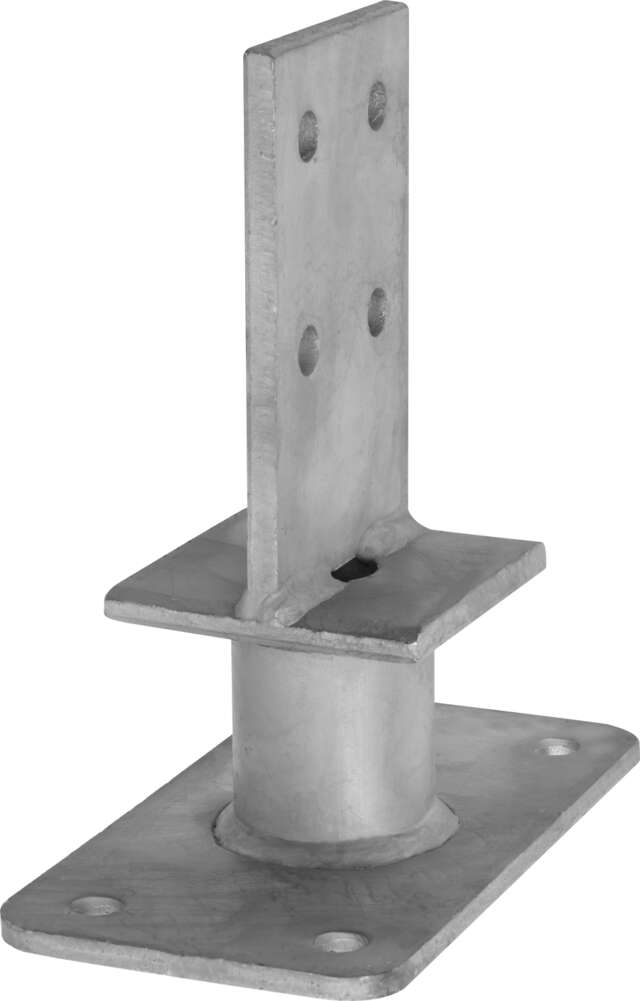

PIED DE POTEAU EN ÂME FIXE 48,3 X 120 HT 250 Bte de 10
|
Boîte de 10 | 250 mm | 100 mm | 180 mm |
A473260
|
|

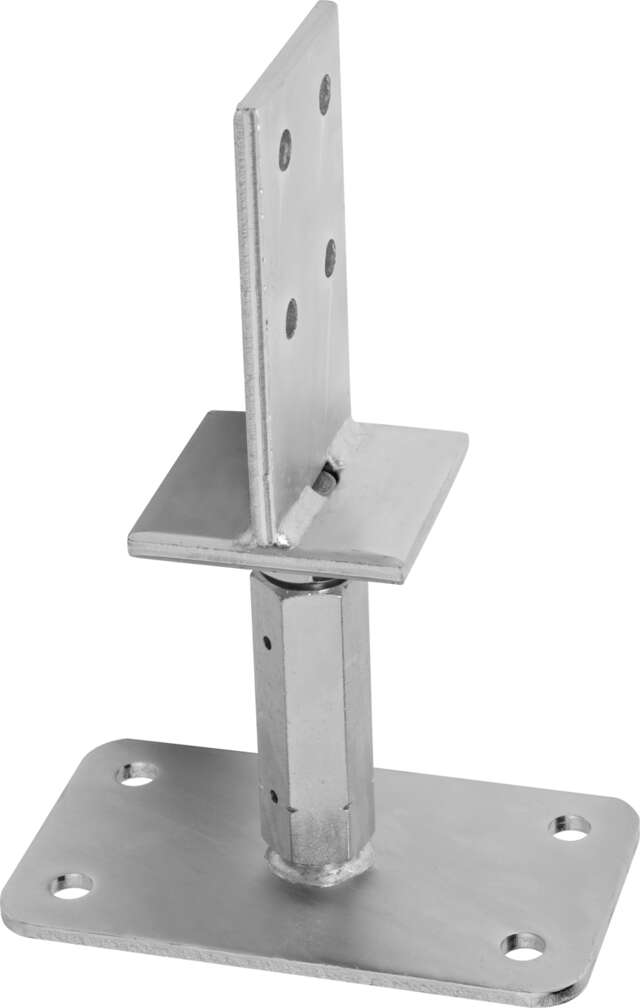

PIED DE POTEAU EN ÂME RÉGLABLE HT M20 X 150-200 Bte de 5
|
Boîte de 5 | 150 à 200 mm | 180 mm | 100 mm |
A473280
|
Technical documentation
Internal post base - pied-de-poteau-en-ame-fiche-technique
