Pied de poteau pour moise

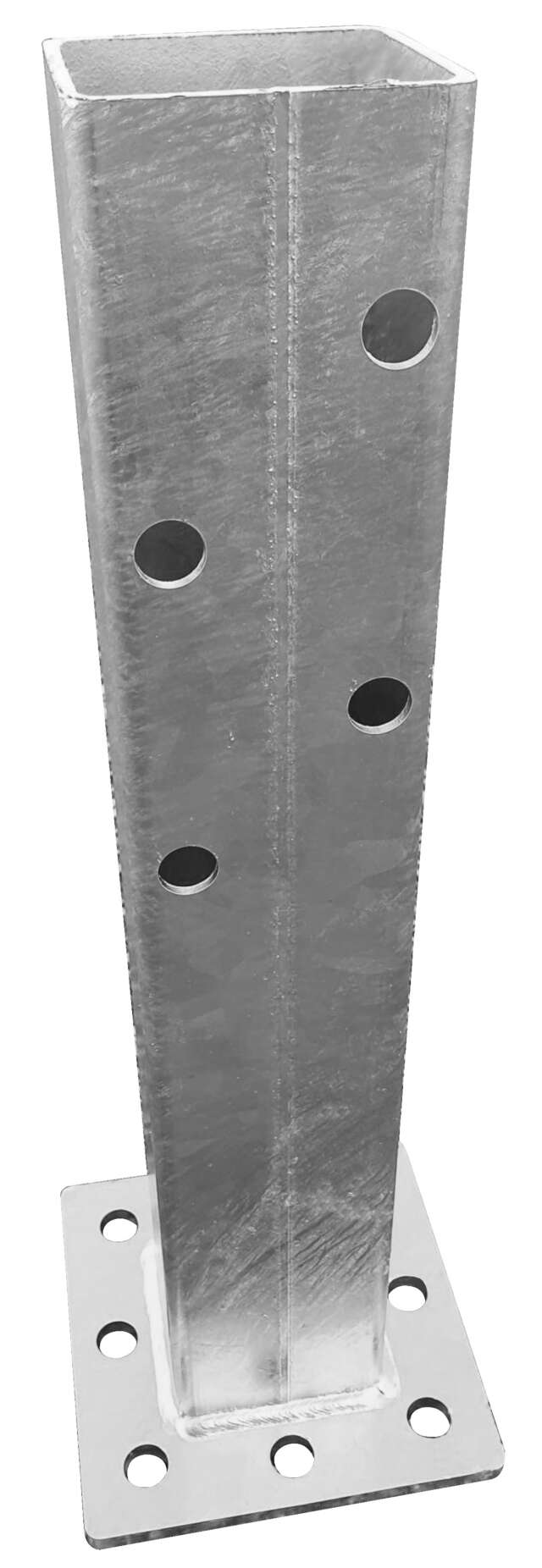

Post base for double timber post
Post base for double timber assembly
Description

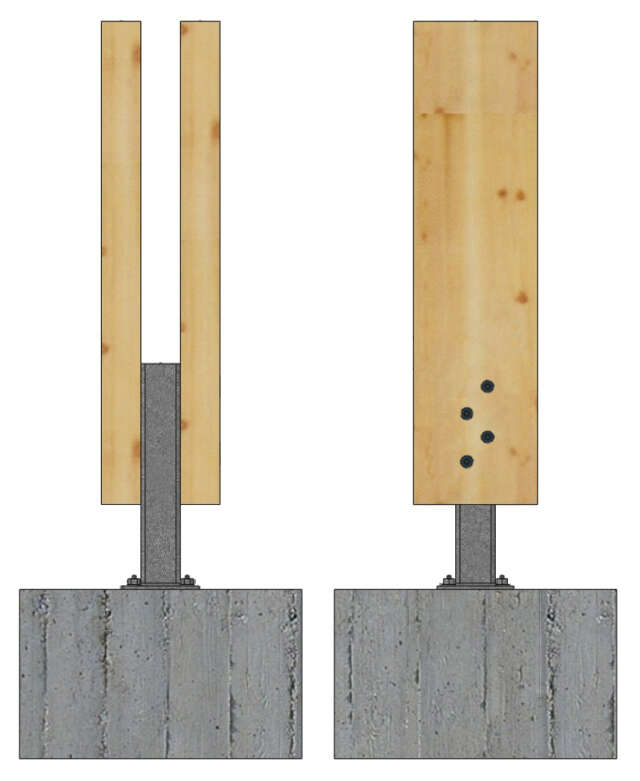

- The post base for double timber assembly allows the fixing of a sistered timber assembly onto a concrete slab.
- Steel S235JR in accordance with NF EN 10025.
- Post bases protect the wood from rising moisture and fungal attack.
- Finish: hot-dip galvanization, with cataphoresis coating available on request.
Product advantages
- Made in France
- 8 holes on the tube: allow easy fastening of the double timber assembly and provide very high tensile load resistance
- 8 holes on the base plate: offer more options when fixing near the edge of a slab
- Template plate included: makes drilling holes in the slab easier without being obstructed by the tube height when using a hammer drill
Application
SUPPORTS :
- Supporting structure: concrete
- Supported element: solid timber
UTILISATIONS :
- verandas
- pergolas
- covered terraces
- patio covers
- canopy posts
- ...
Concrete
Concrete
Product variants
|
Designation 1 variants |
Hauteur | Finition | Condt | Reference |
|---|---|---|---|---|
|
70 X 400 GALVANISÉE
|
400 mm | Galvanisée | Unité |
A473295
|
Technical documentation
Post base for double timber post - pied-de-poteau-pour-moise-fiche-produit
