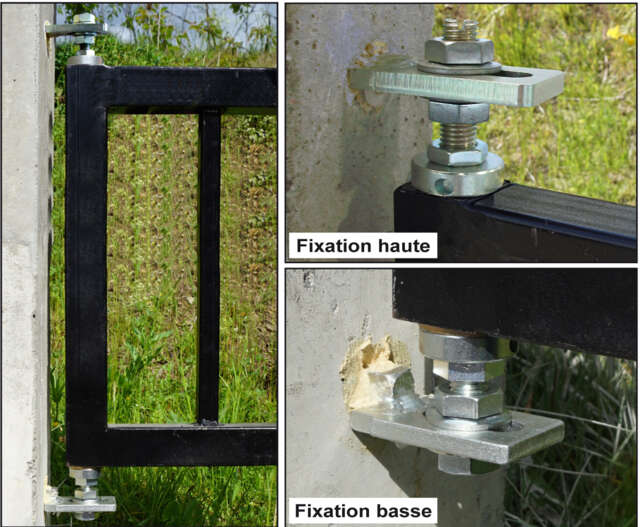

Pivot de portail à la résine pour portail acier sans seuil
Pivot de portail à la résine pour portail acier sans seuil

Pivot hinge for steel gate without step; to be anchored with resin

Pivot hinge for steel gate without step; anchored with resin

Description

  • Pivot hinge for steel gate without step; to be anchored with resin.
  • Box contains:
    • 1 upper fixing:
      • 1 anthracite grey cover
      • 1 white cover
      • 1 upper plate
      • 1 threaded rod M14 x 100
      • 2 M14 lock nuts
      • 1 M14 nut
      • 1 centring device
      • 1 cylindrical bushing
      • 1 unthreaded rod
      • 1 block (to be welded to the gate)

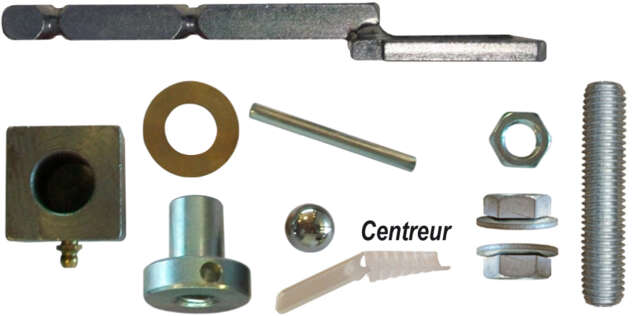

    • 1 lower fixing:
      • 1 lower plate
      • 1 centring device
      • 1 cylindrical bushing
      • 1 threaded rod M14 x 100
      • 1 brass washer Ø18
      • 1 steel ball bearing Ø18
      • 2 M14 lock nuts
      • 1 M14 nut
      • 1 block (to be welded to the gate)

Product advantages

  • Easy to install
  • Very neat lower fixing: no fastener
  • Advantage: the upper bracket is installed and then the gate is mounted
  • Cover supplied:
    • Patented
    • Does not come off
    • 3 different heights possible
    • UV stable

Application

  • Fixing for steel gate without step – to be anchored with resin
Béton Béton
Parpaing plein/pierre Parpaing Plein/pierre
Brique pleine Brique pleine
View all variants Technical Informations Download technical sheet

Product variants

Designation
1 variants 		Capacité Carré Condt Reference
PIVOT DE PORTAIL SANS SEUIL A LA RÉSINE 35 X 35 - tube 40
 Portail tube 40 x 40 mm 35 x 35 mm 1 kit
A011680
