Pivot de portail à cheviller pour portail bois avec seuil
Pivot de portail à cheviller pour portail bois avec seuil

Pivot hinge for wooden gate with step; to be anchored

Pivot hinge for wooden gate with step; to be anchored

Description

  • Pivot hinge for wooden gate with step; to be anchored.
  • Permissible load: 150 kg per leaf.
  • Box contains:
    • 1 upper fixing:
      • 1 black cover
      • 1 brown cover
      • 1 upper bracket
      • 1 threaded rod M14 x 100
      • 2 M14 lock nuts
      • 1 M14 nut
      • 1 threaded expansion anchor bolt Ø16
      • 1 cylindrical bushing
      • 1 unthreaded rod
      • 1 wooden gate bracket
    • 1 lower fixing:
      • 1 lower plate, 3 holes
      • 1 cylindrical bushing
      • 1 brass washer Ø18
      • 1 steel ball bearing Ø18
      • 1 threaded expansion anchor bolt Ø16
      • 2 threaded expansion anchor bolts Ø10
      • 1 M14 nut
      • 1 wooden gate bracket

Product advantages

  • Easy to install
  • Advantage: the upper bracket is installed and then the gate is mounted
  • Cover supplied:
    • Patented
    • Does not come off
    • 3 different heights possible
    • UV stable

Application

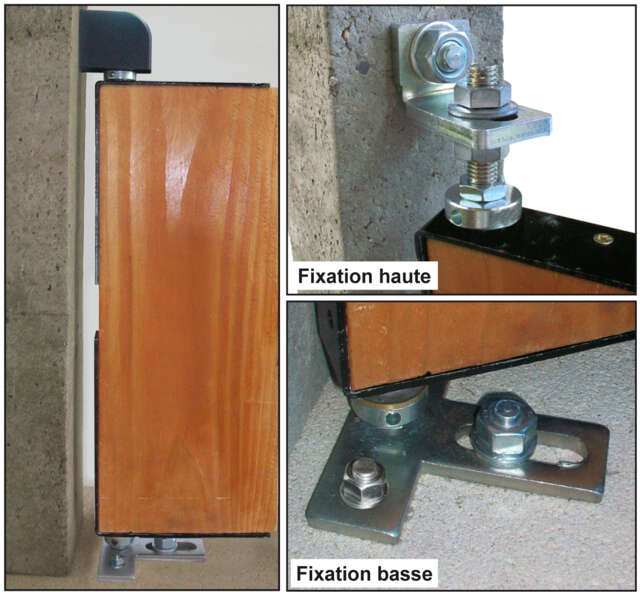

  • Fixing for wooden gate with step – to be anchored
Béton Béton
Parpaing plein/pierre Parpaing Plein/pierre
Brique pleine Brique pleine
View all variants Technical Informations Download technical sheet
