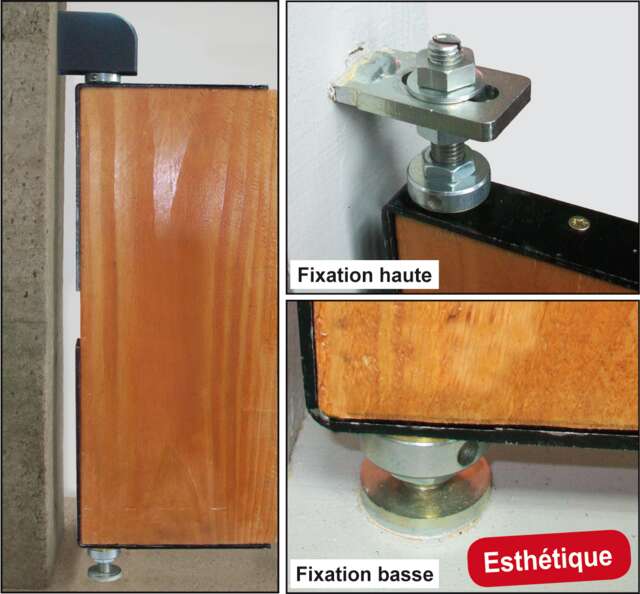

Pivot de portail à la résine pour portail bois avec seuil
Pivot de portail à la résine pour portail bois avec seuil

Pivot hinge for wooden gate with step; to be anchored with resin

Pivot hinge for wooden gate with step; anchored with resin

Description

  • Pivot hinge for wooden gate with step; to be anchored with resin.
  • Permissible load: 150 kg per leaf.
  • Box contains:
    • 1 upper fixing:
      • 1 black cover
      • 1 brown cover
      • 1 upper plate
      • 1 threaded rod M14 x 100
      • 2 M14 lock nuts
      • 1 M14 nut
      • 1 cylindrical bushing
      • 1 unthreaded rod
      • 1 wooden gate bracket
    • 1 lower fixing:
      • 1 lower rod
      • 1 cylindrical bushing
      • 1 brass washer Ø18
      • 1 steel ball bearing Ø18
      • 1 M14 threaded washer
      • 1 M14 nut
      • 1 wooden gate bracket

Product advantages

  • Easy to install
  • Very neat lower fixing: no fastener
  • Advantage: the upper bracket is installed and then the gate is mounted
  • Cover supplied:
    • Patented
    • Does not come off
    • 3 different heights possible
    • UV stable

Application

  • Fixing for wooden gate with step – to be anchored with resin
Béton Béton
Parpaing plein/pierre Parpaing Plein/pierre
Brique creuse Brique creuse
View all variants Technical Informations Download technical sheet

Product variants

Designation
1 variants 		Condt Reference
PIVOT DE PORTAIL BOIS RÉSINE
 1 kit
A010500
