cheville-laiton

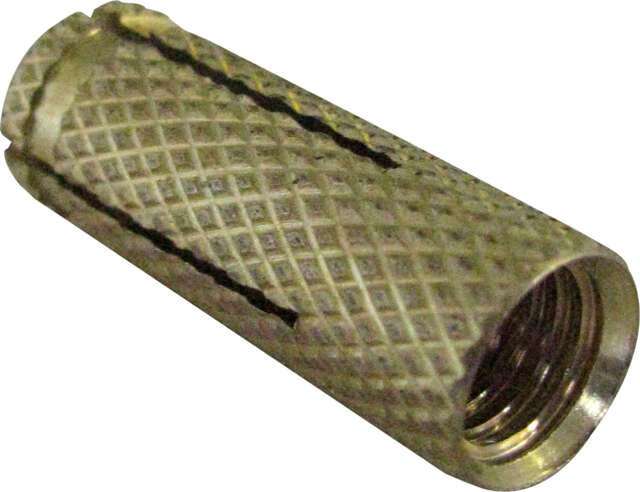

Brass anchor
Metal anchor for supporting a threaded rod
Description
- Metal anchor for supporting a threaded rod.
- Compatible with metric screws and threaded rods.
Product advantages
- Knurled outer surface for good holding power.
- Minimal anchorage depth: can be anchored in a narrower substrate.
- Quick and easy to install: expands when screw/threaded rod is screwed in without the need for a specific tool.
- Fire- and corrosion-resistant.
Application
- Fixing and support for threaded rod in concrete and solid materials – even narrower substrates.
Béton
Parpaing Plein/pierre
Brique pleine
Béton
Parpaing Plein/pierre
Brique pleine
Product variants
|
Designation 7 variants |
Condt | Filet | Longueur | Surcondt | Reference |
|---|---|---|---|---|---|
|
CHEVILLE LAITON ING 608 M 6 Bte de 100
|
Boîte de 100 | M6 | 24 mm | Aucun |
A290030
|
|
CHEVILLE LAITON ING 608 M 7 X 150 Bte de 100
|
Boîte de 100 | M7 | 30 mm | Aucun |
A290035
|
|
CHEVILLE LAITON ING 608 M 8 - Bte de 100
|
Boîte de 100 | M8 | 30 mm | Aucun |
A290040
|
|
CHEVILLE LAITON ING 608 M 10 Bte de 100
|
Boîte de 100 | M10 | 35 mm | Aucun |
A290050
|
|
CHEVILLE LAITON ING 608 M 12 Bte de 50
|
Boîte de 50 | M12 | 40 mm | Aucun |
A290060
|
|
CHEV. LAITON M6 Sachet de 20
|
Sachet de 20 | M6 | 24 mm | 30 sachets |
A857310
|
|
CHEV. LAITON M8 Sachet de 50
|
Sachet de 50 | M8 | 30 mm | 30 sachets |
A857335
|
Technical informations - Implementation data
| Anchor length | Drilling diameter | Drilling depth | |
|---|---|---|---|
| M6 | 24 mm | 8 mm | 30 mm |
| M7 | 30 mm | 10 mm | 40 mm |
| M8 | 30 mm | 10 mm | 40 mm |
| M10 | 35 mm | 12 mm | 45 mm |
| M12 | 40 mm | 15 mm | 50 mm |
Technical informations - Average indicative loads (kg)
| M6 | M7 | M8 | M10 | M12 | |
|---|---|---|---|---|---|
| concrete | 65 | 80 | 110 | 160 | 220 |
| stone / solid breeze block | 55 | 70 | 90 | 130 | 160 |
| solid brick | 55 | 70 | 90 | 130 | 160 |
