CHEVILLE CS

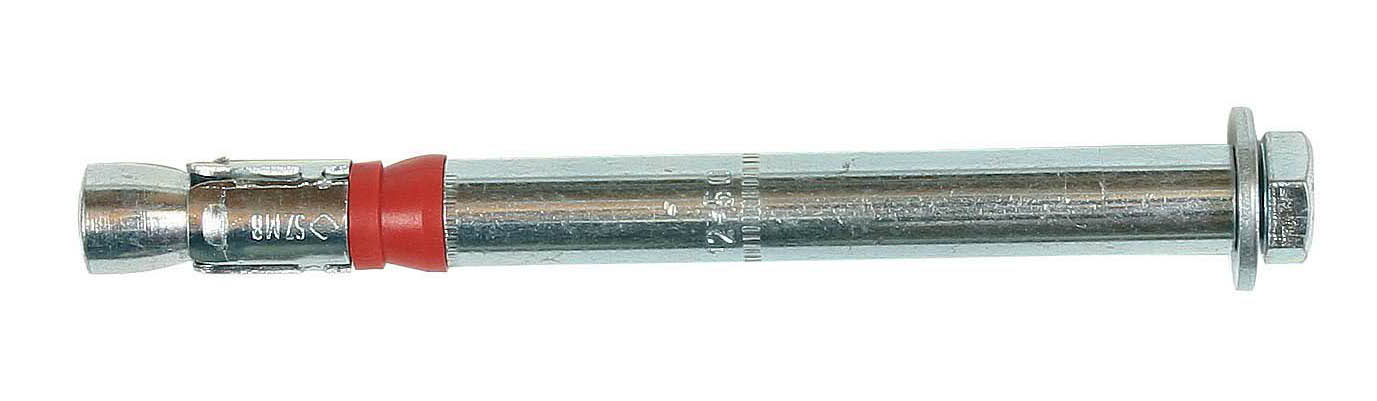

CS expansion anchor
Metal safety expansion anchor
Description
- Metal expansion anchor for holding heavy loads in concrete.
- Screw in high-quality grade 8.8 steel.
- Excellent anchorage values.
- High dynamic load-bearing capability.
Product advantages
- Completely safe for heavy loads.
- C1 and C2 seismic resistance.
- Fire-resistant.
Application
- Any heavy-duty to very heavy-duty fixings in concrete: railings, porticoes, steel parts etc.
Béton fissuré
Béton
Approvals
ETA 02/0030 - option 1.
Seismic design category C1 and C2.
Fire-resistant.
Seismic design category C1 and C2.
Fire-resistant.
Béton fissuré
Béton
ETA 02/0030 - option 1.
Seismic design category C1 and C2.
Fire-resistant.
Seismic design category C1 and C2.
Fire-resistant.
Product variants
|
Designation 6 variants |
Condt | Filet | Longueur | Surcondt | Reference |
|---|---|---|---|---|---|
|
CHEVILLE SECURITE 10/ 0 Bte de 100
|
Boîte de 100 | M6 | 60 mm | Aucun |
A242010
|
|
CHEVILLE SECURITE 12/30 Bte de 50
|
Boîte de 50 | M8 | 100 mm | Aucun |
A242040
|
|
CHEVILLE SECURITE 12/50 Bte de 25
|
Boîte de 25 | M8 | 120 mm | Aucun |
A242050
|
|
CHEVILLE SECURITE 15/15 Bte de 25
|
Boîte de 25 | M10 | 100 mm | Aucun |
A242060
|
|
CHEVILLE SECURITE 15/45 Bte de 25
|
Boîte de 25 | M10 | 130 mm | Aucun |
A242070
|
|
CHEVILLE SECURITE 18/20 Bte de 20
|
Boîte de 20 | M12 | 120 mm | Aucun |
A242080
|

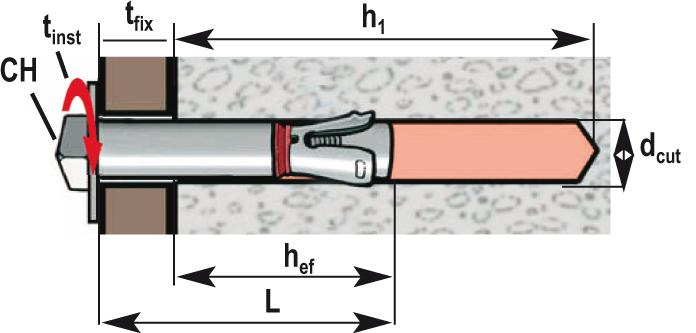

Technical informations - Implementation data
 |
|||||||
|---|---|---|---|---|---|---|---|
| L Anchor length |
dcut Drilling diameter |
Øvis Screw diameter |
tfix Thickness max. |
h1 Drilling depth |
tinst tightening torque |
SW Screw head |
|
| 10 / 0 | 60 mm | 10 mm | M6 | 1 mm | 70 mm | 15 Nm | 10 mm |
| 12 / 30 | 100 mm | 12 mm | M8 | 30 mm | 80 mm | 30 Nm | 13 mm |
| 12 / 50 | 120 mm | 12 mm | M8 | 50 mm | 80 mm | 30 Nm | 13 mm |
| 15 / 15 | 100 mm | 15 mm | M10 | 15 mm | 95 mm | 50 Nm | 17 mm |
| 15 / 45 | 130 mm | 15 mm | M10 | 45 mm | 95 mm | 50 Nm | 17 mm |
| 18 / 20 | 120 mm | 18 mm | M12 | 20 mm | 110 mm | 80 mm | 19 mm |
Technical informations - Average indicative loads (kg)
| Ø10 | Ø12 | Ø15 | Ø18 | |
|---|---|---|---|---|
| Cracked conrete | 400 | 650 | 1000 | 1500 |
| non Cracked conrete | 600 | 900 | 1600 | 2500 |
Technical informations - Utilisations
Technical informations - Utilisations
Technical documentation
CS expansion anchor - ete-02-0030-cheville-cs
