GOUJON FILETÉ GALVANISÉ

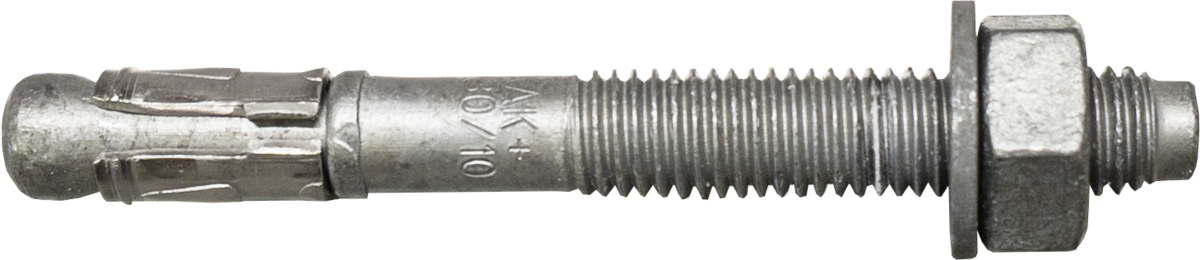

Galvanised threaded expansion anchor bolt
Hot-dip galvanised steel threaded expansion anchor bolt
Description
- Hot-dip galvanised steel threaded expansion anchor bolt.
- High-quality grade 8.8 steel.
Product advantages
- Grade 8.8 steel: high performance.
- Three-part stainless-steel bushing: better load distribution.
- Quick and easy to install:
- automatic expansion
- Nut and washer pre-mounted.
- Installation through the part to be affixed.
- In-situ positioning enables excellent anchorage.
- Ideal for series mounting.
Application
- Any fixings in concrete: railings, porticoes, steel parts etc.
Béton
Parpaing Plein/pierre
Béton
Parpaing Plein/pierre
Product variants
|
Designation 6 variants |
Condt | Diamètre | Longueur | Surcondt | Reference |
|---|---|---|---|---|---|
|
GOUJON FILETE 10/ 25/ 90 GALVA Bte de 40
|
Boîte de 40 | 10 mm | 90 mm | Aucun |
A235075
|
|
GOUJON FILETE 10/ 70/140 GALVA Bte de 25
|
Boîte de 25 | 10 mm | 140 mm | Aucun |
A235090
|
|
GOUJON FILETE 12/ 5/103 GALVA Bte de 20
|
Boîte de 20 | 12 mm | 103 mm | Aucun |
A235120
|
|
GOUJON FILETE 12/ 30/120 GALVA Bte de 20
|
Boîte de 20 | 12 mm | 120 mm | Aucun |
A235130
|
|
GOUJON FILETE 12/ 50/148 GALVA Bte de 20
|
Boîte de 20 | 12 mm | 148 mm | Aucun |
A235140
|
|
GOUJON FILETE 10 /25/ 90 GALVA Sachet de 4
|
Sachet de 4 | 10 mm | 90 mm | 25 sachets |
A857420
|

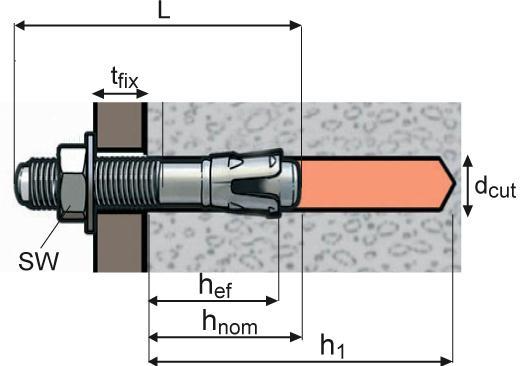

Technical informations - Implementation data
 |
||||||
|---|---|---|---|---|---|---|
| Galvanised threaded expansion anchor bolt | dcut | L | tfix | h1 | hef | SW |
| 10 / 10 / 92 | 10 mm | 92 mm | 10 mm | 75 mm | 60 mm | 17 mm |
| 10 / 50 / 132 | 10 mm | 132 mm | 50 mm | 75 mm | 60 mm | 17 mm |
| 12 / 5 / 103 | 12 mm | 103 mm | 5 mm | 90 mm | 70 mm | 19 mm |
| 12 / 20 / 118 | 12 mm | 118 mm | 20 mm | 90 mm | 70 mm | 19 mm |
| 12 / 50 / 148 | 12 mm | 148 mm | 50 mm | 90 mm | 70 mm | 19 mm |
Technical informations - Average indicative loads (kg)
| Galvanised threaded expansion anchor bolt | M10 | M12 |
|---|---|---|
| 550 | 740 |
Technical informations - Utilisation
Technical informations - Utilisation
