CHEVILLE SERRU avec vis tête fraisée
CHEVILLE SERRU avec vis tête fraisée

Serru anchor

Metal expansion anchor

Description

  • Metal expansion anchor for solid materials.
  • Grade 6.8 steel or A2 stainless steel screw.
  • Tamper-proof version with special screw drive available.

Product advantages

  • Significant expansion.
  • Quick and easy to install:
    • Expansion during screwing.
    • Nut and washer pre-mounted.
  • Installation through the part to be affixed.

Application

  • Any fixings in concrete and solid materials: railings, porticoes, steel parts etc.
Concrete Concrete
Solid block/stone Solid block/stone
Solid brick Solid brick
View all variants Technical Informations Download technical sheet

Product variants

Designation
20 variants 		Filet Longueur Reference Condt
CHEVILLE SERRU TH M6 L
 M6 60 mm
A240070
Boîte de 50
CHEVILLE SERRU TH M6 L
 M6 60 mm
A857930
Sachet de 4
CHEVILLE SERRU TH M8
 M8 60 mm
A240080
Boîte de 50
CHEVILLE SERRU TH M8 L
 M8 80 mm
A240090
Boîte de 50
CHEVILLE SERRU TH M8 L
 M8 80 mm
A857940
Sachet de 4
CHEVILLE SERRU TH M10
 M10 70 mm
A240100
Boîte de 50
CHEVILLE SERRU TH M10 L
 M10 100 mm
A240110
Boîte de 40
CHEVILLE SERRU TH M10 L
 M10 100 mm
A857950
Sachet de 4
CHEVILLE SERRU TH M10 L Ø12
 M10 100 mm
A240115
Boîte de 40
CHEVILLE SERRU TH M12
 M12 90 mm
A240120
Boîte de 30
CHEVILLE SERRU TH M12 L
 M12 115 mm
A857960
Sachet de 4
CHEVILLE SERRU TH M6 INOX
 M6 45 mm
A240410
Boîte de 50
CHEVILLE SERRU TH M8 INOX
 M8 60 mm
A240420
Boîte de 50
CHEVILLE SERRU TH M10 INOX
 M10 70 mm
A240430
Boîte de 50
CHEVILLE SERRU TH M12 INOX
 M12 90 mm
A240440
Boîte de 50

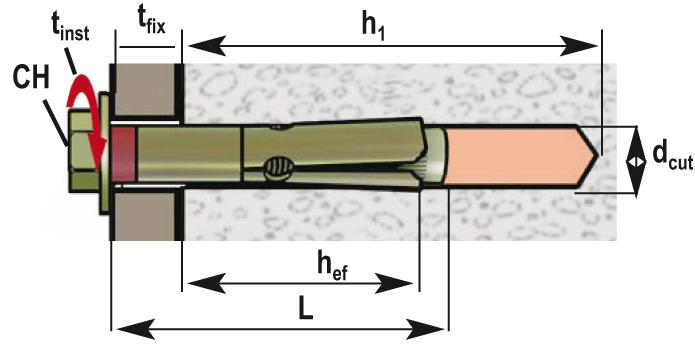

Technical information - Implementation data

  L
Anchor length		 dcut
Drilling diameter 		tfix
Thickness max.		 h1
Drilling depth		 hef
Effective anchor depth		 tinst
Tightening torque 		SW
Screw head
M6 45 mm 8 mm 5 mm 50 mm 40 mm 10 Nm 10 mm
M6 L 60 mm 8 mm 20 mm 65 mm 55 mm 10 Nm 10 mm
M8 60 mm 10 mm 5 mm 65 mm 55 mm 20 Nm 13 mm
M8 L 80 mm 10 mm 27 mm 85 mm 75 mm 20 Nm 13 mm
M10 70 mm 14 mm 5 mm 75 mm 70 mm 35 Nm 17 mm
M10 - Ø12 70 mm 12 mm 5 mm 75 mm 65 mm 35 Nm 17 mm
M10 L 100 mm 14 mm 32 mm 105 mm 95 mm 35 Nm 17 mm
M10 L - Ø12 100 mm 12 mm 32 mm 105 mm 95 mm 35 Nm 17 mm
M12 80 mm 16 mm 5 mm 85 mm 75 mm 50 Nm 19 mm
M12 L 110 mm 16 mm 15 mm 115 mm 105 mm 140 mm 24 mm

Technical informations - Average indicative loads (kg)

    M6 M6L M8 M8L M10 M10 - Ø12 M10L M10L - Ø12 M12 M12L
Concrete TENSION 190 210 250 300 350 320 420 380 470 520
SHEAR 190 190 330 330 590 530 590 530 640 640
stone /
solid breeze block		   150 150 200 250 300 275 375 325 425 475
solid brick   150 150 200 250 300 275 375 325 425 475

Technical informations - Utilisation

Technical informations - Utilisation
