GOUJON FILETÉ INOX

Stainless-steel threaded expansion anchor bolt

A4 stainless-steel threaded expansion anchor bolt

Description

A4 stainless-steel threaded expansion anchor bolt.

Product advantages

A4 stainless-steel: high performance.
Three-part stainless-steel bushing: better load distribution.
Quick and easy to install:
- automatic expansion
- Nut and washer pre-mounted.
- Installation through the part to be affixed.
In-situ positioning enables excellent anchorage.
Ideal for series mounting.

Application

Any fixings in concrete: railings, porticoes, steel parts etc.

Béton

Parpaing Plein/pierre

Béton

Parpaing Plein/pierre

View all variants Technical Informations Download technical sheet

Product variants

Designation 16 variants	Condt	Diamètre	Longueur	Surcondt	Reference

GOUJON FILETE CE 8/ 10/ 80 INOX A4 Bte de 50	Boîte de 50	8 mm	80 mm	Aucun	A233210
GOUJON FILETE CE 8/ 30/ 90 INOX A4 Bte de 50	Boîte de 50	8 mm	90 mm	Aucun	A233220
GOUJON FILETE CE 10/ 10/ 90 INOX A4 Bte de 40	Boîte de 40	10 mm	90 mm	Aucun	A233305
GOUJON FILETE CE 10/ 30/110 INOX A4 Bte de 25	Boîte de 25	10 mm	110 mm	Aucun	A233310
GOUJON FILETE CE 10/ 50/130 INOX A4 Bte de 20	Boîte de 20	10 mm	130 mm	Aucun	A233315
GOUJON FILETE CE 12/ 5/100 INOX A4 Bte de 20	Boîte de 20	12 mm	100 mm	Aucun	A233410
GOUJON FILETE CE 12/ 30/130 INOX A4 Bte de 20	Boîte de 20	12 mm	130 mm	Aucun	A233415
GOUJON FILETE CE 12/ 65/160 INOX A4 Bte de 20	Boîte de 20	12 mm	160 mm	Aucun	A233420
GOUJON FILETE CE 16/ 60/178 INOX A4 Bte de 10	Boîte de 10	16 mm	178 mm	Aucun	A233520
GOUJON FILETE 8/10/ 80 INOX Sachet de 4	Sachet de 4	8 mm	80 mm	25 sachets	A857450
GOUJON FILETE 8/30/ 90 INOX Sachet de 4	Sachet de 4	8 mm	90 mm	25 sachets	A857452
GOUJON FILETE 10/10/ 90 INOX Sachet de 4	Sachet de 4	10 mm	90 mm	25 sachets	A857455
GOUJON FILETE 10/30/110 INOX Sachet de 4	Sachet de 4	10 mm	110 mm	25 sachets	A857457
GOUJON FILETE 12/05/100 INOX Sachet de 4	Sachet de 4	12 mm	100 mm	25 sachets	A857460
GOUJON FILETE 12/30/130 INOX Sachet de 4	Sachet de 4	12 mm	130 mm	25 sachets	A857462
GOUJON FILETE 12/65/160 INOX Sachet de 4	Sachet de 4	12 mm	160 mm	20 sachets	A857464

Technical informations - Implementation data

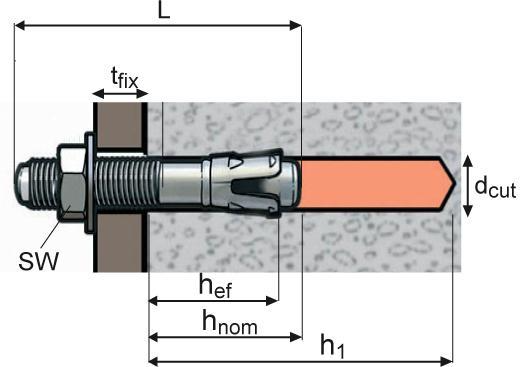

Stainless-steel threaded expansion anchor bolt	dcut	L	_tfix	h₁	h_ef	SW
8 / 10 / 80	8 mm	80 mm	10 mm	75 mm	45 mm	13 mm
8 / 30 / 90	8 mm	90 mm	30 mm	65 mm	45 mm	13 mm
10 / 10 / 90	10 mm	90 mm	10 mm	85 mm	60 mm	17 mm
10 / 30 / 110	10 mm	110 mm	30 mm	85 mm	60 mm	17 mm
10 / 50 / 130	10 mm	130 mm	50 mm	85 mm	60 mm	17 mm
12 / 5 / 100	12 mm	100 mm	5 mm	100 mm	70 mm	19 mm
12 / 30 / 130	12 mm	130 mm	30 mm	105 mm	70 mm	19 mm
12 / 65 / 160	12 mm	160 mm	65 mm	100 mm	70 mm	19 mm
16 / 60 / 178	16 mm	178 mm	60 mm	115 mm	85 mm	24 mm

Technical informations - Average indicative loads (kg)

Stainless-steel threaded expansion anchor bolt	M6	M8	M10	M12	M16	M20
	270	410	550	740	1150	1500
