Resin anchor for heavy loads in substrates lined with insulation
FIX-STORE ISO dimensions
Resin anchor for heavy loads in substrates lined with insulation
Resin anchor for heavy loads in substrates with insulation
Description
- Removable resin anchor for heavy loads in substrates lined with thermal insulation.
- Female double-threaded screw.
- Available in M10 and M12.

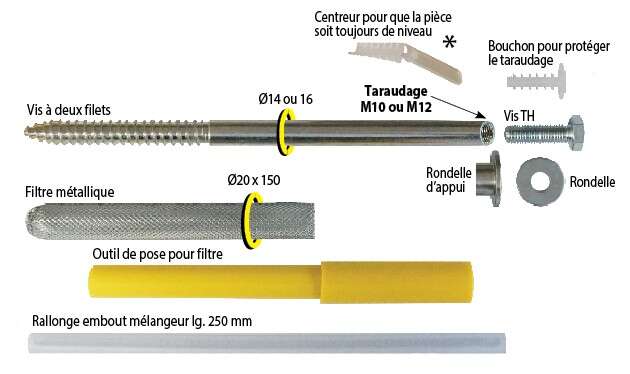

- Contents: Female double-threaded screw + hex head screw + metal resin injection anchor sleeve (not supplied in boxes) + washer + cap to protect the threading + setting tool for the resin injection anchor sleeve + support washer.
Product advantages

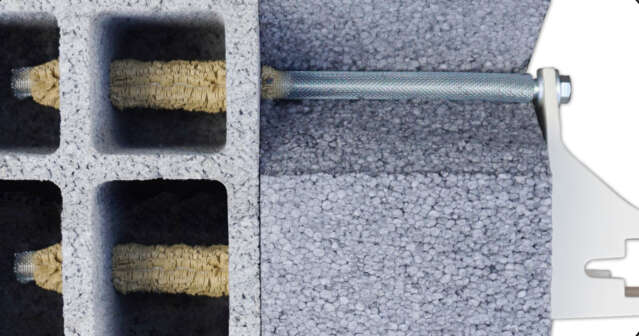

- Anchoring across several holes in the substrate.
- Removable.
- Patented.
- Made in France.
Application

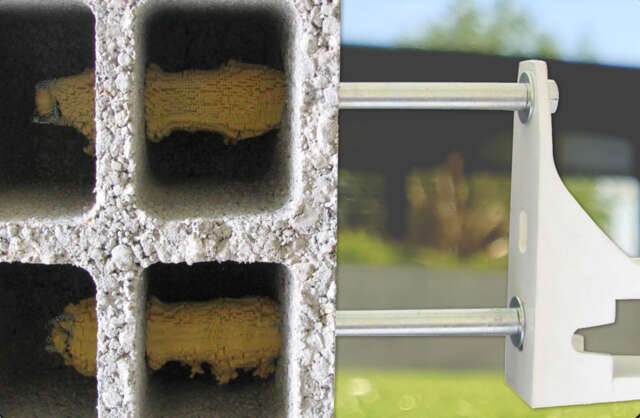

- Heavy fixings in hollow materials: awnings, verandas, barriers, guardrails, satellite dishes etc. for substrates lined with thermal insulation.
Concrete
Solid block/stone
Solid brick
Breeze block
Hollow brick
Cellular concrete
Approvals
CSTB
Concrete
Solid block/stone
Solid brick
Breeze block
Hollow brick
Cellular concrete
CSTB
Product variants
|
Designation 16 variants |
Diamètre | Longueur | Filet | Reference | Condt | Surcondt |
|---|---|---|---|---|---|---|
|
FIX-STORE ISO CREUX 14X250 M10 FILTRE 20X250 Sach. 2
|
14 mm | 250 mm | M10 |
A131132
|
Sachet de 2 | 5 sachets |
|
FIX-STORE ISO CREUX 14X300 M10 FILTRE 20X300 Sach. 2
|
14 mm | 300 mm | M10 |
A131133
|
Sachet de 2 | 5 sachets |
|
FIX-STORE ISO CREUX 14X200 M10 FILTRE 20X150 Sach. 2
|
14 mm | 200 mm | M10 |
A131110
|
Sachet de 2 | 5 sachets |
|
FIX-STORE ISO CREUX 14X250 M10 FILTRE 20X150 Sach. 2
|
14 mm | 250 mm | M10 |
A131120
|
Sachet de 2 | 5 sachets |
|
FIX-STORE ISO CREUX 14X300 M10 FILTRE 20X150 Sach. 2
|
14 mm | 300 mm | M10 |
A131130
|
Sachet de 2 | 5 sachets |
|
FIX-STORE ISO CREUX 16 X 340 M10 FILTRE 20X150 Sach. 2
|
16 mm | 340 mm | M10 |
A131150
|
Sachet de 2 | 5 sachets |
|
FIX-STORE ISO CREUX 16 X 400 M10 FILTRE 20X150 Sach. 2
|
16 mm | 400 mm | M10 |
A131160
|
Sachet de 2 | 5 sachets |
|
FIX-STORE ISO CREUX 16 X 280 M12 FILTRE 20X150 Sach. 2
|
16 mm | 280 mm | M12 |
A131175
|
Sachet de 2 | 5 sachets |
|
FIX-STORE ISO CREUX 16 X 350 M12 FILTRE 20X150 Sach. 2
|
16 mm | 350 mm | M12 |
A131180
|
Sachet de 2 | 5 sachets |
|
FIX-STORE ISO CREUX 16 X 400 M12 FILTRE 20X150 Sach. 2
|
16 mm | 400 mm | M12 |
A131185
|
Sachet de 2 | 5 sachets |
|
FIX-STORE ISO CREUX 14 X 200 M10 Bte de 12
|
14 mm | 200 mm | M10 |
A131135
|
Boîte de 12 | Aucun |
|
FIX-STORE ISO CREUX 14 X 250 M10 Bte de 12
|
14 mm | 250 mm | M10 |
A131140
|
Boîte de 12 | Aucun |
|
FIX-STORE ISO CREUX 14 X 300 M10 Bte de 12
|
14 mm | 300 mm | M10 |
A131145
|
Boîte de 12 | Aucun |
|
FIX-STORE ISO CREUX 16 X 280 M12 Bte de 12
|
16 mm | 280 mm | M12 |
A131190
|
Boîte de 12 | Aucun |
|
FIX-STORE ISO CREUX 16 X 350 M12 Bte de 12
|
16 mm | 350 mm | M12 |
A131195
|
Boîte de 12 | Aucun |
Technical information - Implementation data
| Drilling diameter | Insulation max. | |||
|---|---|---|---|---|
| Solid materials | Hollow materials | Solid materials | Hollow materials | |
| Ø 14 x 200 | 16 mm | 20 mm | 80/90 mm | 50/60 mm |
| Ø 14 x 250 | 16 mm | 20 mm | 130/140 mm | 100/110 mm |
| Ø 14 x 300 | 16 mm | 20 mm | 160/170 mm | 150/160 mm |
| Ø 16 x 280 | 18 mm | 20 mm | 140/150 mm | 130/140 mm |
| Ø 16 x 340 | 18 mm | 20 mm | 210/220 mm | 200/210 mm |
| Ø 16 x 350 | 18 mm | 20 mm | 210/220 mm | 200/210 mm |
| Ø 16 x 400 | 18 mm | 20 mm | 250/260 mm | 250/260 mm |
Technical documentation
Resin anchor for heavy loads in substrates lined with insulation - fix-store-iso-fiche-produit
Resin anchor for heavy loads in substrates lined with insulation - cstb-etudes-de-ponts-thermiques-fixation-store-iso
